Elbow 90 Degree Assembly: Equal (ELA)

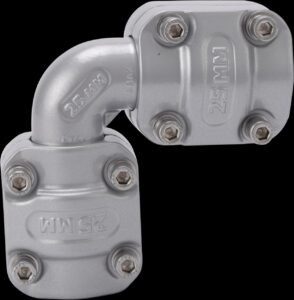

SecureAir Elbow 90 Degree Assembly: Equal (ELA) is a pre-assembled solution for creating reliable 90-degree bends with equal pipe sizes on both sides. Comprising the EL body and two straight connectors (SC), this ready-to-install unit ensures quick deployment and leak-free performance in compressed air systems.
Overview
SecureAir Elbow 90 Degree Assemblies: Equal (ELA) are fully pre-assembled for convenience, using the Elbow 90 Degree Body (EL) combined with two Straight Connectors (SC). Available in sizes from 25mm to 200mm, these assemblies support pressures up to 16 bar (tested at 30 bar) and are designed for equal inlet and outlet configurations, ideal for straightforward directional changes in modular piping networks.
- Pre-Assembled Convenience: Includes EL body + 2 SC connectors for immediate use; no on-site assembly required.
- Equal Size Design: Perfect for symmetric 90-degree turns, maintaining consistent airflow.
- Leak-Proof Performance: Utilizes patent-pending cast teeth and interlocking technology for 100% zero-loss joints.
- Effortless Installation: Clamp-style with guided markings; compatible with Aluminum Pipes (AP).
- High Durability: Anodized aluminum with SS304 hardware resists corrosion and wear.
- Warranty: 15-year comprehensive warranty on material and performance.
100% Made in India, compliant with global standards (ISO, BIS, ASTM, EN). Widely used in automotive, pharmaceuticals, food & beverage, textiles, and manufacturing sectors.
Specifications
| Sr No | Item Code |
Sizes (mm)
|
| 23.11 | ELA20 | 20 |
| 23.21 | ELA25 | 25 |
| 23.31 | ELA40 | 40 |
| 23.41 | ELA50 | 50 |
| 23.51 | ELA63 | 63 |
| 23.61 | ELA80 | 80 |
| 23.71 | ELA100 | 100 |
| 23.81 | ELA150 | 150 |
| 23.91 | ELA200 | 200 |
| Assembly of Sr No 22 Series Elbow 90 Degree Body (EL) and Sr No 15 Straight Connector (SC) |
Note: Dimensions are approximate. Tightening torque follows SC guidelines (e.g., 4-6 Nm for 25mm, up to 40-65 Nm for 200mm). For unequal sizes, use EL body with reducers (RC).
Why Choose SecureAir Elbow 90 Degree Assembly: Equal?
Ready-to-Use Efficiency
Pre-assembled design saves time and labor, reducing installation by up to 50% compared to field assembly.
Balanced Flow
Equal sides ensure uniform air distribution with minimal pressure drop for optimal system performance.
Guaranteed Sealing
Interlocking connectors with rubber seals provide zero-leak assurance, cutting energy costs.
Versatile Application
Suits complex layouts; easily integrates with other SecureAir components for scalable systems.
Technical Specifications
- Material: Aluminum alloy (anodized body), SS304 bolts and hardware.
- Pressure Rating: Operating: Max 16 bar; Test: 30 bar.
- Temperature Range: -20°C to +80°C.
- Standards Compliance: ISO 9001, BIS, ASTM, EN 755.
- Weight: 1-15 kg depending on size.
- Compatibility: Direct connection to Aluminum Pipes (AP); expandable with reducers for unequal setups.
- Installation Notes: Torque per SC specs; includes min-max markings and rubber seal stoppers.
