End Cap (EC) – SecureAir Modular Compressed Air Piping
Overview

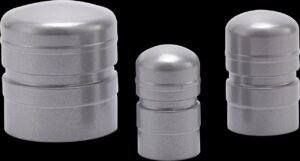

The End Cap (EC) is a simple yet effective solution for terminating pipe runs, compatible with Aluminum Pipes (AP) from 25mm to 200mm. Its clamp design with guided markings allows for quick setup without welding or threading.
| Sr No | Item Code | Sizes (mm) |
| 40.11 | EC20 | 20 |
| 40.21 | EC25 | 25 |
| 40.31 | EC40 | 40 |
| 40.41 | EC50 | 50 |
| 40.51 | EC63 | 63 |
| 40.61 | EC80 | 80 |
| 40.71 | EC100 | 100 |
| 40.81 | EC150 | 150 |
| 40.91 | EC200 | 200 |
| Also Order 1 pieces of Sr No 15 Straight connector(SC) |
Note: Dimensions are approximate. Apply torque per specified range using a torque wrench.
Benefits
- Leak-Proof Seal: Ensures no air loss with interlocking technology.
- Quick Installation: Clamp design reduces setup time.
- Durable Material: Anodized aluminum resists corrosion.
- Versatile Fit: Compatible with all SecureAir pipe sizes.
Technical Details
- Material: Anodized aluminum, SS304 hardware.
- Pressure Rating: Max 16 bar; Test: 30 bar.
- Temperature Range: -20°C to +80°C.
- Weight: 0.2-2 kg depending on size.
- Installation Notes: Use guided markings; tighten per torque specs.
