Elbow 90 Degree Body (EL)

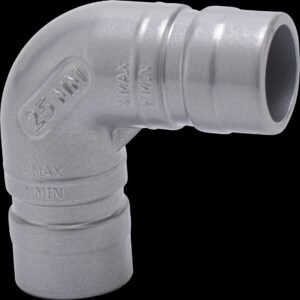

SecureAir Elbow 90 Degree Body (EL) provides the core component for creating precise 90-degree bends in your compressed air piping network. This body requires additional straight connectors (SC) or reducers (RC) for complete assembly, offering flexible and reliable directional changes in modular systems.
Overview
SecureAir Elbow 90 Degree Bodies (EL) are cast from high-strength aluminum alloy, designed for seamless integration into our modular compressed air systems. Available in sizes from 25mm to 200mm, these bodies facilitate sharp 90-degree turns while maintaining pressure integrity up to 16 bar (tested at 30 bar). They are the foundational piece for building custom elbow assemblies using SC or RC connectors.
- Precise 90-Degree Bends: Engineered for optimal airflow with minimal turbulence and pressure loss.
- Modular Assembly Required: Uses 2 straight connectors (SC) or reducers (RC) for full installation; supports combinations for unequal sizes.
- Leak-Proof Compatibility: Interlocks with SecureAir’s patent-pending cast teeth technology for zero-loss performance.
- Lightweight Durability: Anodized aluminum construction resists corrosion and reduces system weight.
- Easy Customization: Fits directly with Aluminum Pipes (AP); no welding needed.
- Warranty: 15-year comprehensive warranty on material and performance.
100% Made in India, compliant with global standards (ISO, BIS, ASTM, EN). Essential for industries like automotive, pharmaceuticals, food & beverage, and manufacturing.
Specifications
Elbow 90 Degree Bodies are sized to match our pipe range. Below is the detailed chart with dimensions. Note: Assembly requires 2 pieces of Sr. No. 15 Straight Connector (SC) and/or Sr. No. 20 Reducer Connector (RC) or combination.
| Sr No | Item Code |
Sizes (mm)
|
| 22.11 | EL20 | 20 |
| 22.21 | EL25 | 25 |
| 22.31 | EL40 | 40 |
| 22.41 | EL50 | 50 |
| 22.51 | EL63 | 63 |
| 22.61 | EL80 | 80 |
| 22.71 | EL100 | 100 |
| 22.81 | EL150 | 150 |
| 22.91 | EL200 | 200 |
| Also Order 2 pieces of Sr No 15 Straight connector(SC) AND/OR Sr No 20 Reducer Connector(RC) Or Combination |
Note: Dimensions are approximate. For full assembly details, refer to Elbow 90 Degree Assembly: Equal (ELA). Tightening torque follows SC/RC guidelines.
Why Choose SecureAir Elbow 90 Degree Body?
Flexible Routing
Allows 90-degree turns in tight spaces, optimizing layout for better air distribution.
Modular Versatility
Combine with SC or RC for equal or unequal configurations, reducing inventory needs.
Superior Flow
Smooth interior minimizes resistance, supporting higher air delivery rates.
Robust Integration
Interlocking design ensures secure, leak-free joints with minimal tools.
Technical Specifications
- Material: High-strength aluminum alloy (anodized), compatible with SS304 hardware.
- Pressure Rating: Operating: Max 16 bar; Test: 30 bar.
- Temperature Range: -20°C to +80°C.
- Standards Compliance: ISO 9001, BIS, ASTM, EN 755.
- Weight: 0.5-8 kg depending on size.
- Compatibility: Requires 2 SC/RC for assembly; fits Aluminum Pipes (AP).
- Installation Notes: Use with guided markings and rubber seals; torque per connector specs.
