Equal T Assembly: Equal (ETA)

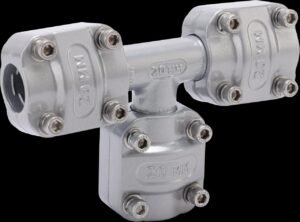

SecureAir Equal T Assembly: Equal (ETA) is a pre-assembled solution for creating three-way branching with equal pipe sizes on all ends. Comprising the ET body and three straight connectors (SC), this ready-to-install unit ensures efficient and balanced air distribution in compressed air systems.
Overview
SecureAir Equal T Assemblies: Equal (ETA) are factory-assembled using the Equal T Body (ET) and three Straight Connectors (SC). Available in sizes from 25mm to 200mm, these units support pressures up to 16 bar (tested at 30 bar) and are designed for equal inlet/outlet configurations, promoting uniform airflow and simplifying installation.
- Pre-Assembled Design: ET body + 3 SC connectors for immediate use; eliminates on-site assembly.
- Equal Three-Way Branching: Ensures consistent air flow across all ports, minimizing pressure loss.
- Leak-Proof Technology: Utilizes patent-pending cast teeth and interlocking for 100% zero-loss joints.
- Effortless Installation: Clamp-style with guided markings; compatible with Aluminum Pipes (AP).
- High Durability: Anodized aluminum with SS304 hardware resists corrosion and wear.
- Warranty: 15-year comprehensive warranty on material and performance.
100% Made in India, compliant with global standards (ISO, BIS, ASTM, EN). Suitable for automotive, pharmaceuticals, food & beverage, textiles, and manufacturing sectors.
Specifications
Equal T Assemblies: Equal (ETA) are pre-configured for equal sizes. Below is the detailed sizing chart with dimensions. Assembly: 1 x Sr. No. 28 Equal T Body (ET) + 3 x Sr. No. 15 Straight Connector (SC).
| Sr No | Item Code | Sizes (mm) |
| 29.11 | ETA20 | 20 |
| 29.21 | ETA25 | 25 |
| 29.31 | ETA40 | 40 |
| 29.41 | ETA50 | 50 |
| 29.51 | ETA63 | 63 |
| 29.61 | ETA80 | 80 |
| 29.71 | ETA100 | 100 |
| 29.81 | ETA150 | 150 |
| 29.91 | ETA200 | 200 |
Assembly of Sr No 28 Equal T(ET) and Sr No 15 Straight Connector (SC)
Note: Dimensions are approximate. Tightening torque follows SC guidelines (e.g., 4-6 Nm for 25mm, up to 40-65 Nm for 200mm). For unequal sizes, use ET body with reducers (RC).
Why Choose SecureAir Equal T Assembly: Equal?
Ready-to-Use Efficiency
Pre-assembled design saves up to 50% on installation time compared to field assembly.
Balanced Air Distribution
Equal three-way branching ensures uniform flow, reducing energy consumption.
Guaranteed Sealing
Interlocking connectors with rubber seals provide zero-leak assurance, cutting costs.
Versatile Application
Integrates seamlessly into complex layouts; expandable with other SecureAir components.
Technical Specifications
- Material: Aluminum alloy (anodized body), SS304 bolts and hardware.
- Pressure Rating: Operating: Max 16 bar; Test: 30 bar.
- Temperature Range: -20°C to +80°C.
- Standards Compliance: ISO 9001, BIS, ASTM, EN 755.
- Weight: 1-15 kg depending on size.
- Compatibility: Direct connection to Aluminum Pipes (AP); expandable with reducers for unequal setups.
- Installation Notes: Torque per SC specs; includes min-max markings and rubber seal stoppers.
