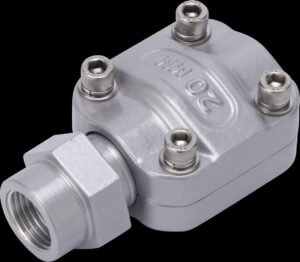

SecureAir Male Threaded Adaptor Assembly (MTA) is a pre-assembled solution for connecting SecureAir piping systems to equipment with male threaded ports. Comprising a Male Threaded Adaptor (MT) and a Straight Connector (SC), it ensures a secure, leak-proof transition. Made from anodized aluminum with SS304 hardware, it supports up to 16 bar pressure and comes with a 15-year warranty. 100% Made in India, compliant with ISO, BIS, ASTM, and EN standards.
Overview
The MTA assembly simplifies installation by combining an MT adaptor with an SC connector, offering a ready-to-use solution for integrating with threaded systems. Available in sizes from 25mm to 200mm, it supports NPT/BSP thread standards for versatile compatibility.
Specifications
| Sr No | Item Code | Sizes |
| 45.11 | MTA20-1/2 | 20mm*1/2″ BSP |
| 45.12 | MTA20-3/4 | 20mm*3/4″ BSP |
| 45.21 | MTA25-1/2 | 25mm*1/2 BSP |
| 45.22 | MTA25-3/4 | 25mm*3/4″ BSP |
| 45.23 | MTA25-1 | 25mm*1″ BSP |
| 45.31 | MTA40-1/2 | 40mm*1/2″ BSP |
| 45.32 | MTA40-1 | 40mm*1″ BSP |
| 45.33 | MTA40-1.1/4 | 40mm*1.1/4″ BSP |
| 45.34 | MTA40-1.1/2 | 40mm*1.1/2″ BSP |
| 45.35 | MTA40-2 | 40mm*2″ BSP |
| 45.41 | MTA50-1/2 | 50mm*1/2″ BSP |
| 45.42 | MTA50-1 | 50mm*1″ BSP |
| 45.43 | MTA50-1.1/2 | 50mm*1.1/2″ BSP |
| 45.45 | MTA50-2 | 50mm*2″ BSP |
| 45.51 | MTA63-2 | 63mm*2″ BSP |
| 45.52 | MTA63-2.1/2 | 63mm*2.1/2″ BSP |
| 45.61 | MTA80-2.1/2 | 80mm*2.1/2″ BSP |
| 45.62 | MTA80-3 | 80mm*3″ BSP |
| 45.71 | MTA100-3 | 100mm*3″ BSP |
| 45.72 | MTA100-4 | 100mm*4″ BSP |
| Assembly of Sr No 44 Male Thread Adaptor(MT) and Sr No 15 Straight Connector (SC) OR Sr No 20 Reducer Connector (RC) |
Note: Dimensions are approximate. Apply torque per specified range using a torque wrench. Thread types (NPT/BSP) available per request.
Benefits
- Pre-Assembled Convenience: Ready-to-install MT + SC combo saves time.
- Leak-Proof Connection: Interlocking technology ensures zero air loss.
- Versatile Compatibility: Adapts to male threaded systems with ease.
- Durable Build: Anodized aluminum resists corrosion.
Technical Details
- Material: Anodized aluminum, SS304 hardware.
- Pressure Rating: Max 16 bar; Test: 30 bar.
- Temperature Range: -20°C to +80°C.
- Weight: 0.6-6 kg depending on size.
- Installation Notes: Use PTFE tape on threads; tighten per torque specs.
